Chapter 10. Kernel Control Groups

Contents

10.1. Technical Overview and Definitions
10.2. Scenario
10.3. Control Group Subsystems
10.4. Using Controller Groups
10.5. For More Information

Kernel Control Groups (abbreviated known as “cgroups”) are a kernel feature that allows aggregating or partitioning tasks (processes) and all their children into hierarchical organized groups. These hierarchical groups can be configured to show a specialized behavior that helps with tuning the system to make best use of available hardware and network resources.

10.1. Technical Overview and Definitions

The following terms are used in this chapter:

  • “cgroup” is another name for Control Groups.

  • In a cgroup there is a set of tasks (processes) associated with a set of subsystems that act as parameters constituting an environment for the tasks.

  • Subsystems provide the parameters that can be assigned and define CPU sets, freezer, or—more general—“resource controllers” for memory, disk I/O, etc.

  • cgroups are organized in a tree-structured hierarchy. There can be more than one hierarchy in the system. You use a different or alternate hierarchy to cope with specific situations.

  • Every task running in the system is in exactly one of the cgroups in the hierarchy.

10.2. Scenario

See the following resource planning scenario for a better understanding (source: /usr/src/linux/Documentation/cgroups/cgroups.txt):

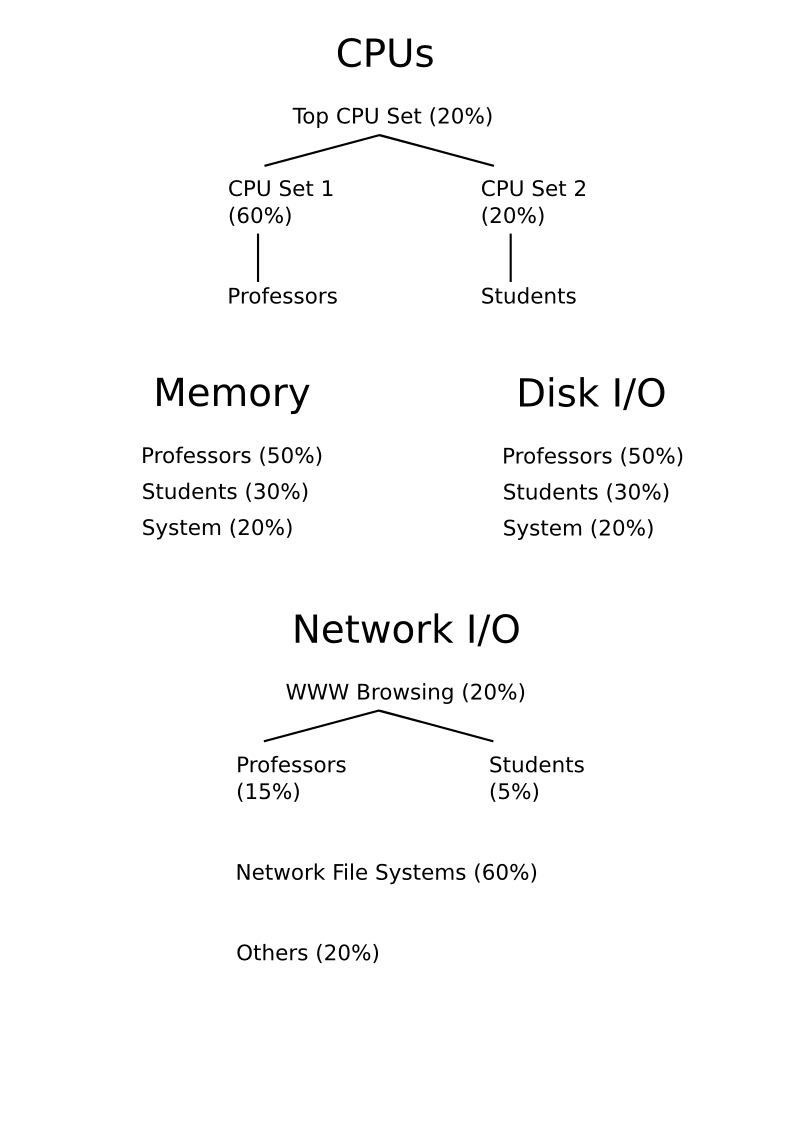

Figure 10.1. Resource Planning

Resource Planning

Web browser such as Firefox will be part of the Web network class, while the NFS daemons such as (k)nfsd will be part of the NFS network class. On the other side, Firefox will share appropriate CPU and memory classes depending on whether a professor or student started it.

10.3. Control Group Subsystems

The following subsystems are available and can be classified as two types:

Isolation and Special Controllers

cpuset, namespace, freezer, device, checkpoint/restart

Resource Controllers

cpu(scheduler), memory, disk I/O, network

Either mount each subsystem separately:

mount -t cgroup -o cpu none /cpu
mount -t cgroup -o cpuset none /cpuset

or all subsystems in one go:

mount -t cgroup none /cgroups

Some additional information on available subsystems:

Cpuset (Isolation)

Use cpuset to tie processes to system subsets of CPUs and memory (“memory nodes”). For an example, see Section 10.4.3, “Example: Cpusets”.

Namespace (Isolation)

Namespace is for showing private view of system to processes in cgroup. It is mainly used for OS-level virtualization. This subsystem itself has no special functions and just tracks changes in namespace.

Freezer (Control)

The Freezer subsystem is useful for high-performance computing clusters (HPC clusters). Use it to freeze (stop) all tasks in a group or to stop tasks, if they reach a defined checkpoint. For more information, see /usr/src/linux/Documentation/cgroups/freezer-subsystem.txt.

Here are basic commands, how you can use the freezer subsystem:

mount -t cgroup freezer  /freezer -o freezer
# Create a child cgroup:
mkdir /freezer/0
# Put a task into this cgroup:
echo $task_pid > /freezer/0/tasks
# Freeze it:
echo FROZEN > /freezer/0/freezer.state
# Unfreeze (thaw) it:
echo THAWED > /freezer/0/freezer.state
Device (Isoloation)

A system administrator can provide a list of devices that can be accessed by processes under cgroups.

It limits access to a device or a file system on a device to only tasks that belong to the specified cgroup. For more information, see /usr/src/linux/Documentation/cgroups/devices.txt.

Checkpoint/Restart (Control)

Save the state of all processes in a cgroup to a dump file. Restart it later (or just save the state and continue).

Allows to move “saved container” between physical machines (as VM can do).

Dump all process's image to a file.

Cpuacct (Control)

The CPU accounting controller groups tasks using cgroups and accounts the CPU usage of these groups. For more information, see /usr/src/linux/Documentation/cgroups/cpuacct.txt.

CPU (Resource Control)

Share CPU bandwidth between groups with the group scheduling function of CFS (the scheduler). Mechanically complicated.

Memory (Resource Control)

  • Limits memory usage of user space processes.

  • Limit LRU (Least Recently Used) pages.

  • Anonymous and file cache.

  • No limits for kernel memory.

  • Maybe in another subsystem if needed.

For more information, see /usr/src/linux/Documentation/cgroups/memory.txt.

Disk I/O (Resource Control) (Draft)

Three proposals are currently being discussed: dm-ioband, io-throttle, and io-controller.

Network I/O (Resource Control) (Draft)

Still under discussion.

10.4. Using Controller Groups

10.4.1. Prerequisites

To use cgroups, install the following additional packages:

  • libcgroup1 contains basic user space tools to simplify resource management.

  • cpuset

  • libcpuset1

  • kernel-source (for documentation purposes only)

  • lcx

10.4.2. Checking the Environment

The kernel shipped with openSUSE supports cgroups. There is no need to apply additional patches. Execute lxc-checkconfig to see a cgroups environment similar to the following output:

--- Namespaces ---
Namespaces: enabled
Utsname namespace: enabled
Ipc namespace: enabled
Pid namespace: enabled
User namespace: enabled
Network namespace: enabled
Multiple /dev/pts instances: enabled

--- Control groups ---
Cgroup: enabled
Cgroup namespace: enabled
Cgroup device: enabled
Cgroup sched: enabled
Cgroup cpu account: enabled
Cgroup memory controller: enabled
Cgroup cpuset: enabled

--- Misc ---
Veth pair device: enabled
Macvlan: enabled
Vlan: enabled
File capabilities: enabled

To find out which subsystems are available, proceed as follows:

mkdir /cgroups
mount -t cgroup none /cgroups
grep cgroup /proc/mounts

The following subsystems are available: rw, freezer, devices, cpuacct, cpu, ns, cpuset, memory. Disk and network subsystem controllers may become available during SUSE Linux Enterprise Server 11 lifetime.

10.4.3. Example: Cpusets

With the command line proceed as follows:

  1. To determine the number of CPUs and memory nodes see /proc/cpuinfo and /proc/zoneinfo.

  2. Create the cpuset hierarchy as a virtual file system (source: /usr/src/linux/Documentation/cgroups/cgroups.txt):

    mkdir /dev/cpuset
mount -t cpuset cpuset /dev/cpuset
cd /dev/cpuset
mkdir Charlie
cd Charlie
# List of CPUs in this cpuset:
/bin/echo 2-3 > cpus
# List of memory nodes in this cpuset:
/bin/echo 1 > mems
/bin/echo $$ > tasks
# The current shell is now running in the Charlie cpuset
# The next line should display '/Charlie'
cat /proc/self/cpuset

  3. Remove the cpuset using shell commands:

    rmdir /dev/cpuset/Charlie

    This fails as long as this cpuset is in use. First, you have to remove the inside cpusets or tasks (processes) that belong to it. Check this with:

    cat /dev/cpuset/Charlie/tasks

For background information and additional configuration flags, see /usr/src/linux/Documentation/cgroups/cpusets.txt.

With the cset tool, proceed as follows:

# Determine the number of CPUs and memory nodes
cset set --list
# Creating the cpuset hierarchy
cset set --cpu=2-3 --mem=1 --set=Charlie
# Starting processes in a cpuset
cset proc --set Charlie --exec -- stress -c 1 &
# Moving existing processes to a cpuset
cset proc --move --pid PID --toset=Charlie
# List task in a cpuset
cset proc --list --set Charlie
# Removing a cpuset
cset set --destroy Charlie

10.4.4. Example: cgroups

Using shell commands, proceed as follows:

  1. Create the cgroups hierarchy:

    mkdir /dev/cgroup
mount -t cgroup cgroup /dev/cgroup
cd /dev/cgroup
mkdir priority
cd priority
cat cpu.shares

  2. Understanding cpu.shares:

    • 1024 is the default (for more information, see sched-design-CFS.txt) = 50% utilization

    • 1524 = 60% utilization

    • 2048 = 67% utilization

    • 512 = 40% utilization

  3. Changing cpu.shares

    /bin/echo 1024 > cpu.shares

10.5. For More Information

  • Kernel documentation (package kernel-source): files in /usr/src/linux/Documentation/cgroups:

    • /usr/src/linux/Documentation/cgroups/cgroups.txt

    • /usr/src/linux/Documentation/cgroups/cpuacct.txt

    • /usr/src/linux/Documentation/cgroups/cpusets.txt

    • /usr/src/linux/Documentation/cgroups/devices.txt

    • /usr/src/linux/Documentation/cgroups/freezer-subsystem.txt

    • /usr/src/linux/Documentation/cgroups/memcg_test.txt

    • /usr/src/linux/Documentation/cgroups/memory.txt

    • /usr/src/linux/Documentation/cgroups/resource_counter.txt

  • http://lwn.net/Articles/243795/—Corbet, Jonathan: Controlling memory use in containers (2007).

  • http://lwn.net/Articles/236038/—Corbet, Jonathan: Process containers (2007).
